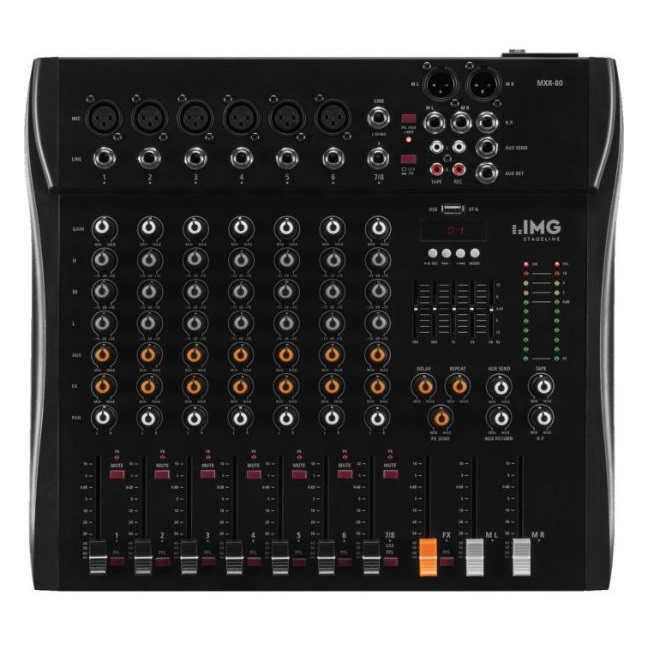

Stageline MXR-80 : 8 Input Mixer with FX, USB & Bluetooth
Stageline MXR-80 : 8 Input Mixer with FX, USB & Bluetooth - Image 2

Stageline MXR-80 : 8 Input Mixer with FX, USB & Bluetooth

Original price was: R6,399.00.Current price is: R3,999.00. - Limited Stock : Contact for Availability ! !

MXR-80

8-channel audio mixer with integrated MP3 player and Bluetooth receiver.
  • Integrated USB audio interface (will be identified and addressed as an external sound card)
  • Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
  • 6 mono input channels with gain control, 3-way equalizer and pan pot
  • 1 stereo input channel with 3-way equalizer and balance control
  • MP3 player
  • USB interface
  • Bluetooth receiver
  • DSP delay, adjustable
  • Adjustable aux return input and FX send output
  • Tape record/play connections
  • 5-band stereo graphic equalizer
  • +48 V phantom power, can be activated as required
  • Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
  • Stereo LED level display
Add to Wishlist
SKU: MXR-80 Category: Tags: , , , , , , ,

Description

Specifications

Bluetooth : 1
DSP : 1
Input channels : 8
Number of mix/mono : 6
No. of stereo : 1
Mic input : 2.2 mV, bal. 8 x XLR
Line input : 50 mV (stereo), 1 x 6.3 mm jack L/R30 mV (mono), 8 x 6.3 mm jack
Tape (play) : 290 mV, 1 x RCA L/R
Aux input : 420 mV, 1 x 6.3 mm jack L/R
Master output : 880 mV, bal. 1 x XLR L/R880 mV, 1 x 6.3 mm jack L/R
Effect send : 9 V, 1 x 6.3 mm jack
Tape (rec) : 400 mV, 1 x RCA L/R
Headphones : ≥ 8 Ω, 1 x 6.3 mm jack
USB : yes
Bluetooth : yes
Frequency range : 20-20,000 Hz
THD : < 0.03%
S/N ratio : > 82 dBA
Equalizer bass : ±15 dB/80 Hz
Equalizer midrange : ±15 dB/2.5 kHz
Equalizer treble : ±15 dB/12 kHz
equalizer : 5-band equalizer
Phantom power : +48 V
Power supply : ˜ 230 V/50 Hz/25 VA
Mains voltage : ~ 230 V
Mains frequency : 50 Hz
Power consumption, operation : 25 VA
Admiss. ambient temp. : 0-40 °C
Width : 382 mm
Height : 53 mm
Depth : 340 mm
Weight : 3.4 kg
Packing dimensions (W x H x L) : 0.43 x 0.41 x 0.09 m
Gross weight : 3.89 kg
Net weight : 3.42 kg
