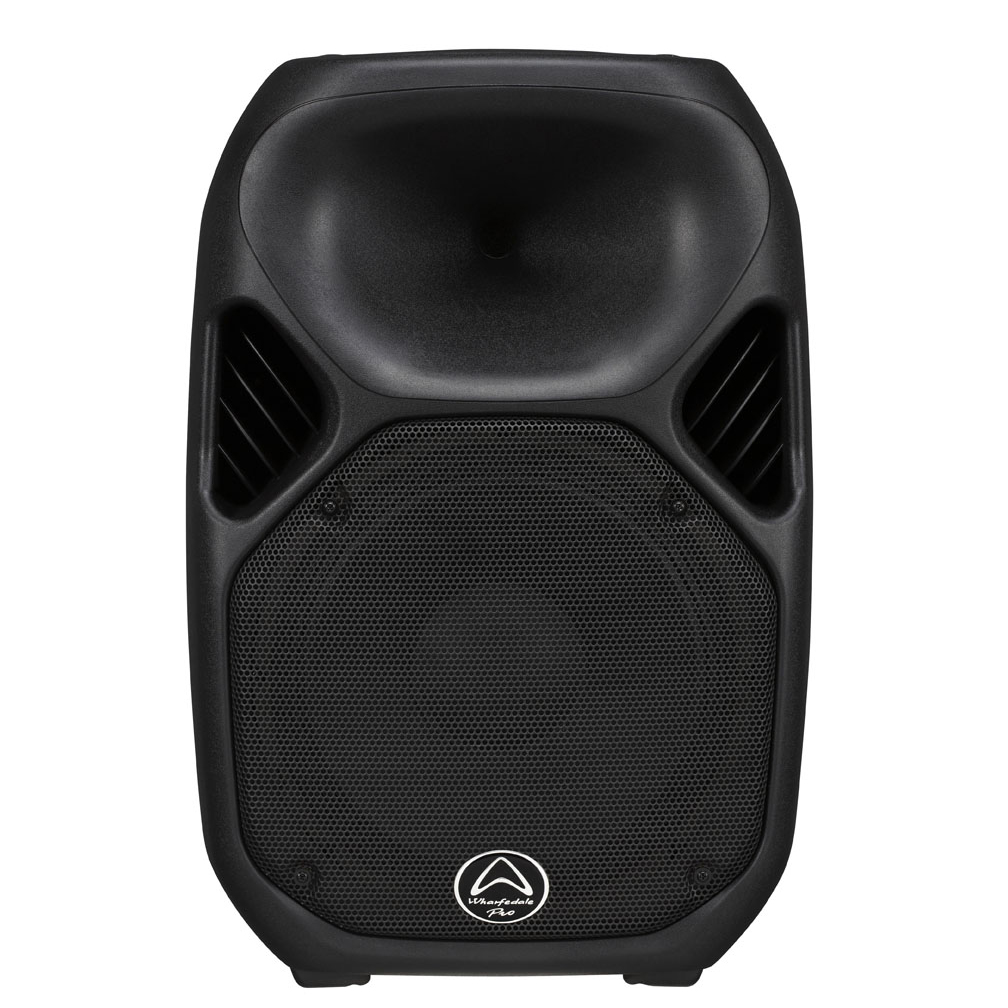

Wharfedale Titan X12B : 12" Passive Speaker
Wharfedale Titan X12B : 12" Passive Speaker - Image 2

Wharfedale Titan X12B : 12″ Passive Speaker

Original price was: R6,299.00.Current price is: R5,399.00.

TITAN PASSIVES VERSATILE LEGENDS

  • 8″, 12″ and 15″ Plastic, passive loudspeakers
  • IP54 Certified
  • Installation, DJs, bands and performance
  • Wharfedale Pro drivers
  • Portable and powerful
  • M8 rigging points
  • Optional wall brackets
  • Optional tour bags

Key Features

  • 12″ passive
  • 1.75″ HF compression driver
  • 2.5″ LF voice coil
  • 250 watts AES (RMS)
  • 500 watts Programme
  • 1000 watts Peak
  • 128 dB Max SPL @ 1 meter
Add to Wishlist
SKU: WHAR-TITAN X12 B Categories: , , Tags: , , , , , , ,

Description

Specifications

System Type : Passive

Configuration : 12” 2-way

Frequency Response (+/-3 dB) : 55 Hz-20 KHz

Frequency Range (-10 dB) : 50 Hz-20 KHz

Sensitivity (2.83 v / 1 m) : 98 dB

Calculated Maximum SPL @1 m : 128 dB

System Rated Impedance : 8 Ω

Low Frequency Transducer

Size : 305 mm / 12”

Voice Coil Size  : 64.26 mm / 2.5”

Rated Impedance : 8 Ω

LF Power (re:AES2-2012) : 250 w

High Frequency Transducer

HF Driver Type : Compression Driver

Voice Coil Size : 44 mm / 1.75”

Exit Size : 25 mm / 1”

Diaphragm Material : Titanium

Rated Impedance : 8 Ω

HF Power (re:AES2-2012) : 40 w

Nominal Coverage (H x V) : Hybrid Symmetry Horn 100°x80°

Power

System Power AES (RMS) : 250 w

System Programme Power : 500 w

System Peak Power : 1000 w

Crossover frequency : 2.6 KHz

Input Connector : 2 x NL4 (speakON compatible)

Hardware

Pole Mount : 35 mm with lock screw

Handles : 2 on sides

Mounting points : M8 * 10

Enclosure

Enclosure Material : Trapezoidal / Polypropylene

Finish : Black

Grille Material & Finish : 1.2 steel

Dimensions – Unpacked

Height : 582.7 mm /  22.9”

Width Front : 384.6 mm / 15.1”

Width Rear : 384.6 mm / 15.1”

Depth : 318.6 mm / 12.5”

Dimensions – Packed

Height : 663 mm / 26.1”

Width Front : 435 mm / 17.1”

Width Rear : 435 mm / 17.1”

Depth : 408 mm / 16.1”

Weight

Net Weight (kg / lbs) : 12.0 kg / 26.4 lbs

Gross Weight (kg / lbs) : 15.1 kg / 33.2 lbs
