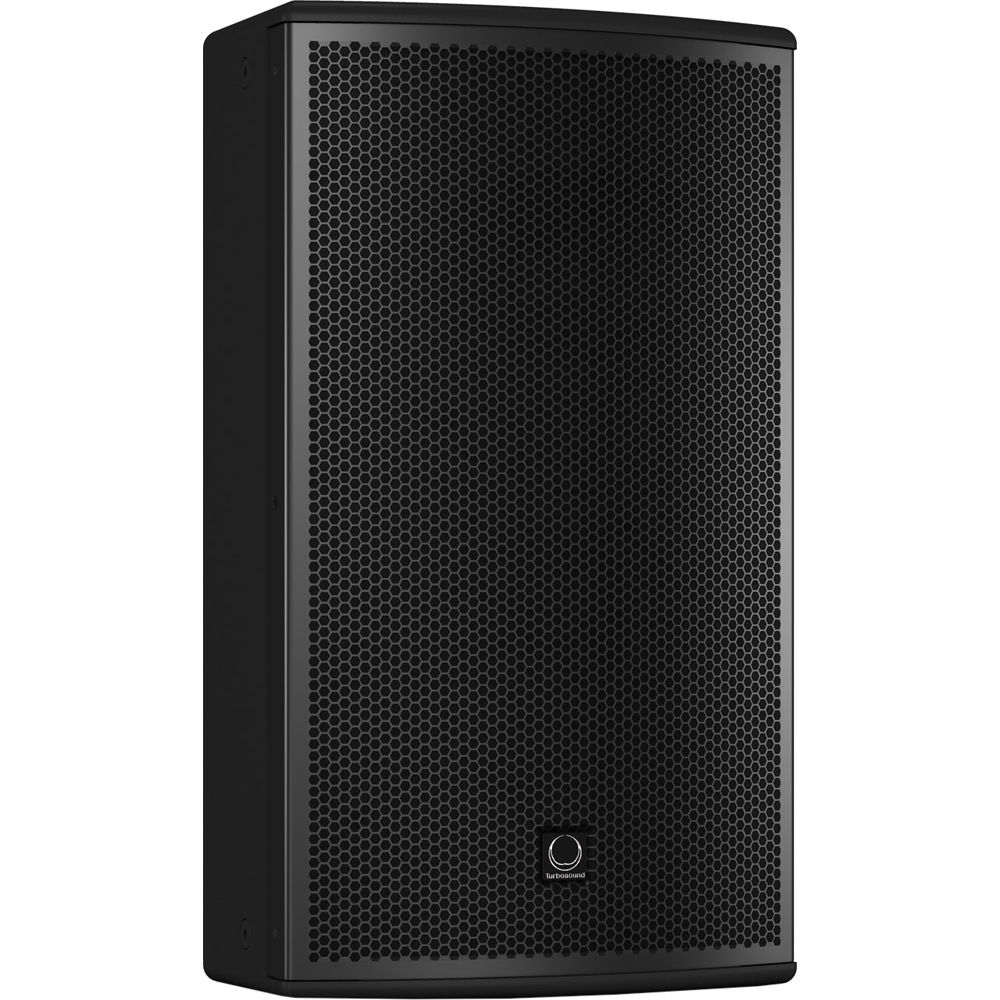

Turbosound NuQ122-AN : 12″ Active Speaker
R21,799.00
2500 Watt 2 Way 12″ Full Range Powered Loudspeaker with Klark Teknik DSP Technology and ULTRANET Networking
Features :
2 way full range powered loudspeaker for portable PA and installation applications
2,500 Watt power featuring Klark Teknik Class-D technology
Klark Teknik Digital Signal Processing for total system control
ULTRANET digital audio networking connects to mixers and other sources
12″ low frequency driver with low mass voice coil for improved transient response
Aluminium dome 1″ neodymium motor compression driver
Low distortion waveguide provides 70° H x 70° V dispersion
Fully featured user interface with LCD display for ease of navigation
PC remote control software downloadable at turbosound.com
15 mm (5/8″) birch plywood enclosure with hard wearing semi matt black paint finish
Rugged powder coated perforated steel mesh grille
Integral 35 mm pole mount and handles
Multiple internal rigging points allow bracket mount and suspension in any orientation
Mains input on Neutrik powerCON* connector
Designed and engineered in the U.K.
Description
Specs :
System
Frequency Response
55 Hz – 18 kHz ±3 Db
50 Hz – 20 kHz -10 dB
Nominal Dispersion
70° H x 70° V @ -6 dB points
Maximum SPL
131 dB peak
Crossover Type
Active
Transducers
1 x 12″ ( 315.5) LF driver
1 x 1″ (25.4 mm) HF compression driver
Limiter
Independent HF, LF, peak and rms
Amplifier
Maximum Output Power*
Type
Class-D
Protection
Short circuit, thermal
Connectors
Input/link
Sensitivity
+4dBu or +14 dBu software switchable
Input impedance
40 kO balanced
Maximum input level
+22 dBu
Ultranet input/link
2 x RJ45
Mains Supply
Neutrik powerCON 20A†
Controls
DSP
Rotary push-encoder and level control
Buttons for Process, Setup, Exit, Enter
User DSP Functions
Factory EQ Presets
Positioning, Sound mode, FBQ
Display
LCD 128 x 32, blue, backlit
Delay
0 – 300 ms
Equalisation
High and low shelving EQ 2 x parametric EQ
Limiter
Zero attack input limiter
Presets
20 total presets, 19 user-definable
Crossover
High Pass L-R 24 dB/oct
Protection
Lock-out function for all settings
Ultranet Digital Network
Digital processing
A/D conversion
24-bit, 44.1/48kHz sample rate
Converter type
24-bit, delta-sigma
System
Signal
16 channels
Latency
< 0.9 ms
Frequency response
20 Hz to 20 kHz (+0 / -3 dB)
Dynamic range
typical 92 dB
Cabling
Cables
Shielded CAT5
Cable length
max. 246 ft / 75 m recommended
Power Supply
Power consumption
90 W @ 1/8 max power
Voltage (fuses)
USA / Canada
120 V~, 60 Hz (T 15 A H 250 V)
UK / Australia / Europe
220-240 V~, 50/60 Hz (T 10 A H 250 V)
Korea / China
220-240 V~, 50/60 Hz (T 10 A H 250 V)
Japan
100 V~, 50/60 Hz (T15 A H 250 V)
Enclosure
Dimensions HWD
656 x 374 x 340 mm (25.8 x 14.7 x 13.4″)
Net weight
20.2 kg (44.5 lbs)
Construction
15 mm (5/8″) birch plywood
Finish
Semi matt black paint
Grille
Powder coated perforated steel
Flying hardware
M10 x 8 points
