Hybrid+ Altium 12 & Altium 18 Combo System
HYBRID+ ALTIUM12 & ALTIUM18 COMBO
The Hybrid+ Altium12 is the latest generation of the fast selling Hybrid+ brand. Convenience, high SPL and a dynamic sounding cabinet is what you can expect from the Altium12. Hybrid+ Altium18 is a revolutionary audio powerhouse designed to elevate your sonic experience. With its cutting-edge Class D Amplification and SMPU technology, it ensures crystal-clear sound reproduction.
Key Features

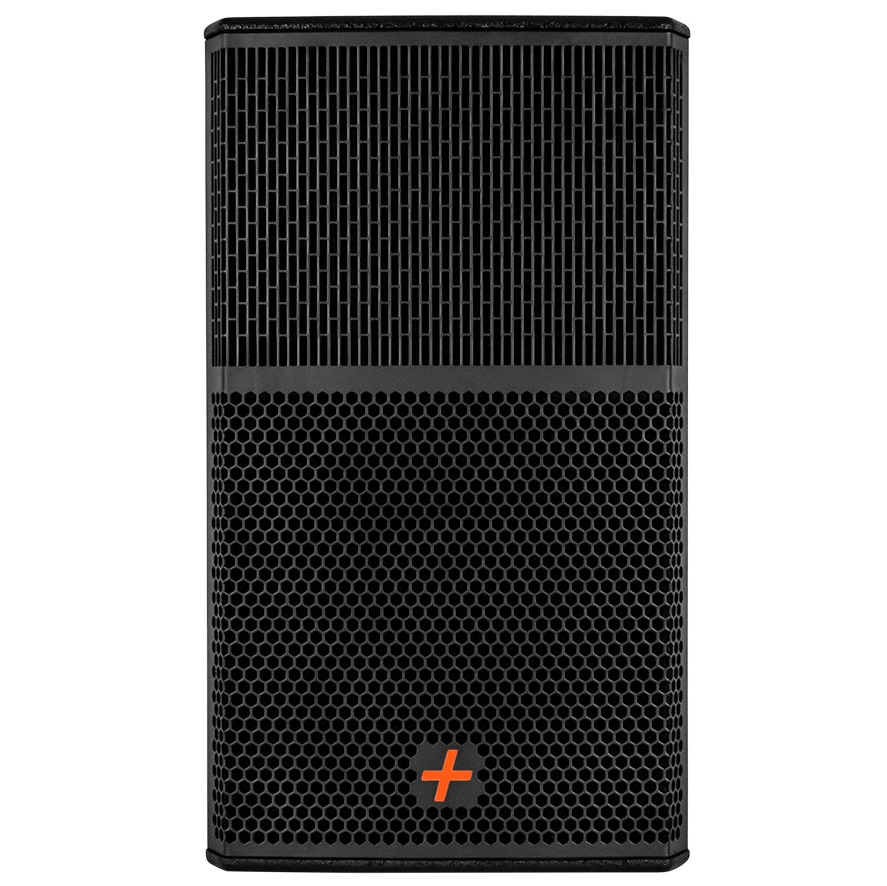

Altium 12
The Altium12 is an active 12″, 2-way, birch-plywood enclosed multi-purpose speaker cabinet. It can be used as an FOH full-range speaker for a small to medium sized audience, a fill to the main FOH for larger venues, and as a mid-top cabinet reinforced by sub-bass speakers.
It features a comprehensive DSP (Digital Signal Processor) with all the key functions such as electronic crossover, eight signal processing filters per channel, electronic limiters, time alignment, a Bluetooth playback module and a WiFi interface for basic parameter changes through the use of any smart device/PC.
The Altium12 has seven strategically placed M8 fly points for permanent installations and a dual angle 35mm pot for pole-mounting for temporary or rental applications. Optimally placed recessed metal cup handles allow for easy handling and mobility.
The Altium12 is protected with a 3-coat, water resistant, hardwearing, environmentally friendly UltraTex (USA) black textured paint. Together with the contemporary, two-tone metal grille, it is beautifully finished and adds eye-catching aesthetics to any venue.
Altium 18
Revolutionary Audio Powerhouse : Designed to elevate your sonic experience with cutting-edge technology.
Class D Amplification : Ensures crystal-clear sound reproduction, providing high-quality audio output.
SMPU Technology : Incorporates advanced technology for enhanced performance and efficiency.
M32 Pole Mount : Allows for versatile Bass-Mid/Top configurations, adapting seamlessly to diverse audio setups.
High Efficiency 18” Sub-bass : Delivers powerful and deep bass response, enhancing the overall audio experience.
Compact Design : Despite its power, it maintains a compact form factor for easy transportation and setup.
Self-powered : Eliminates the need for external amplifiers, simplifying setup and reducing clutter.
2400 (p-p) Watt Continuous Output : Provides impressive power output for a wide range of applications.
On-board DSP : Offers unparalleled control over audio settings and parameters, allowing for fine-tuning to match specific requirements.
XLR Input with Link Out : Ensures easy connectivity with other audio equipment, facilitating seamless integration into existing setups.
Power In and Power Out Connector : Enhances convenience during setup and allows for daisy-chaining multiple units.
Peak LED : Provides real-time monitoring of audio levels, aiding in optimal performance and preventing clipping.
4 User Selectable Presets : Allows users to quickly switch between predefined audio settings, catering to various preferences and environments.
Setting New Standards : The Hybrid+ Altium18 is redefining the professional sound system industry, pushing boundaries and setting new benchmarks for performance and versatility.

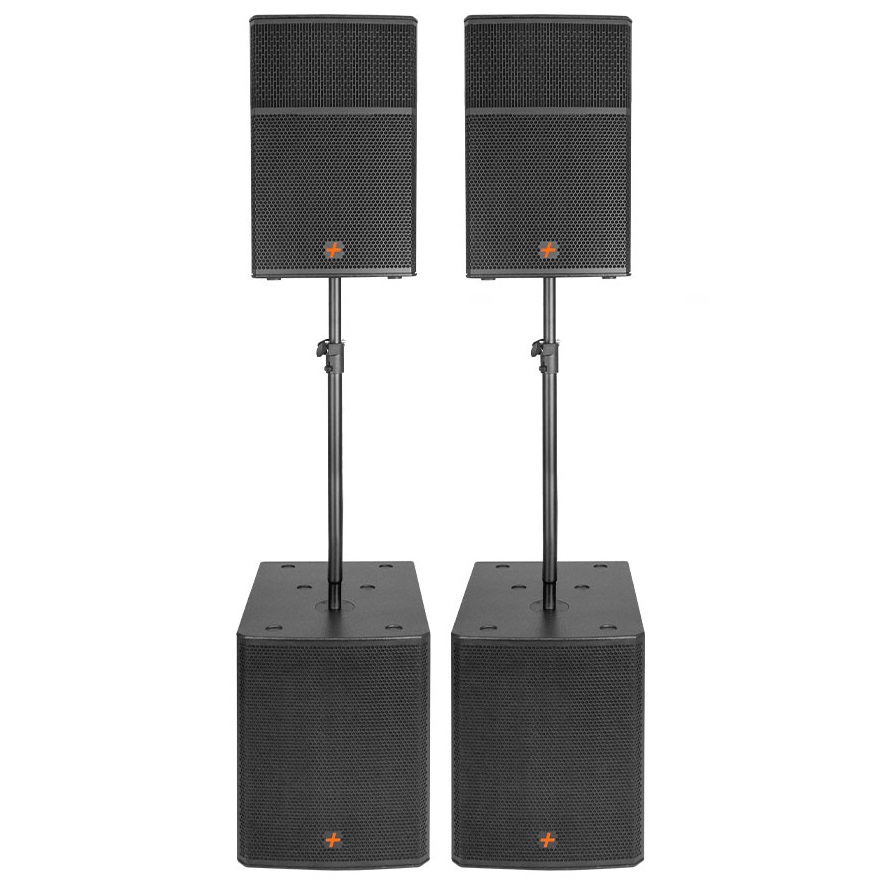

System Consists Of:
2 x Hybrid+ Altium12
2 x Hybrid+ Altium18
2 x M20-35mm Poles
2 x Bass-Tops Link Cables
Description
Specifications
Altium 12
Multi-purpose, Active 12″ Full Range
RMS/Peak Power (AES standard) : 400+100W/1600+400W
PSU : SMPS, 90% Efficient
Amplification : Class D, 2 Channel
DSP : 24bit/48KHz
DSP Features : Electronic Crossover (Locked), 8 x EQ Filters/Channel (Locked), Time Alignment (Locked), Compressor-Limiters (Locked), Phase Correction (Locked)

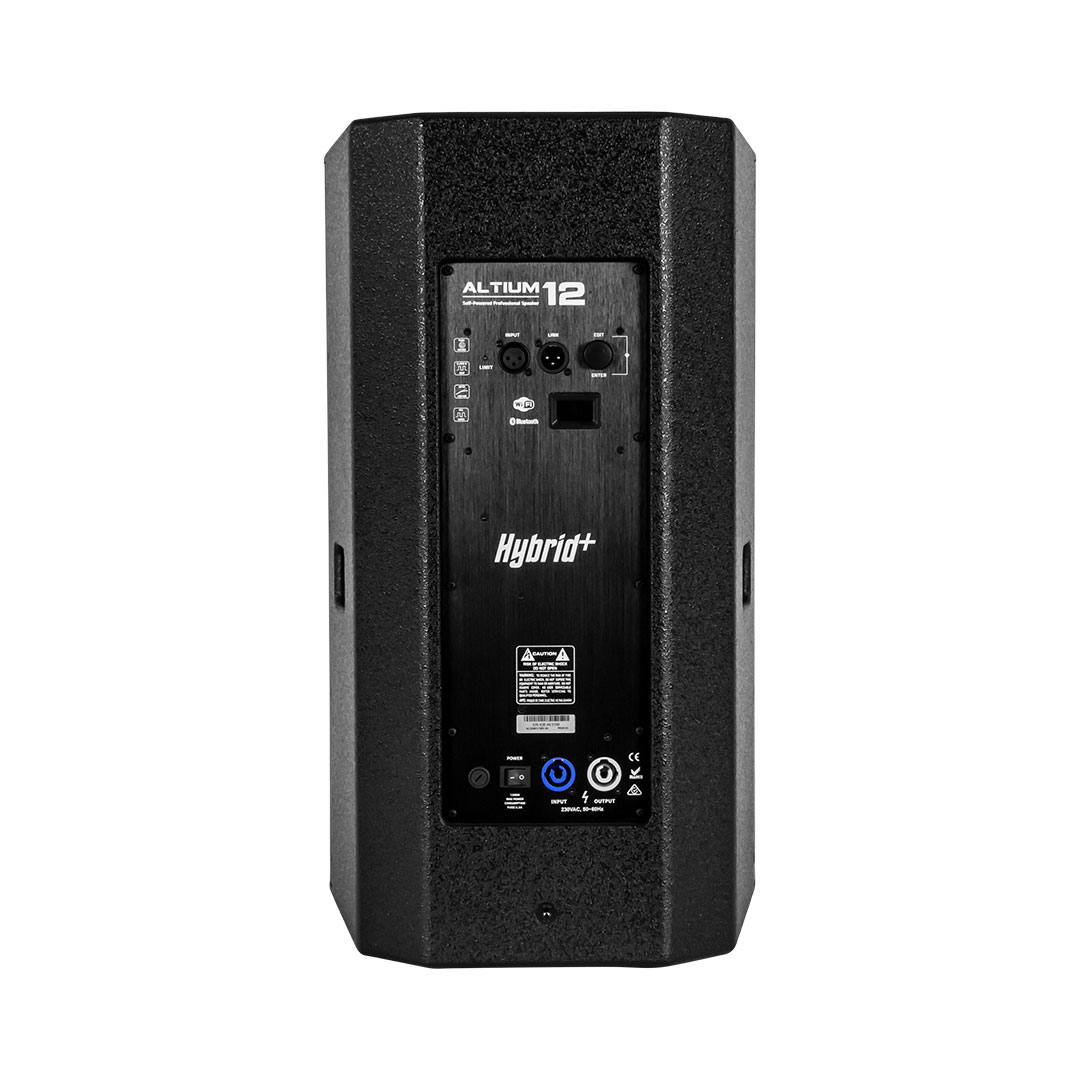

Back panel control : Rotary encoder, Bluetooth Gain, Input Gain, Line/Mic selector, Bass, Mids and Treble control and 4 User selectable pre-sets
Wi-Fi Control : Bluetooth Gain, Input Gain, Line/Mic selector, Bass, Mids and Treble control, 4 User selectable pre-sets and Firmware update
LF : Custom CELTO Acoustique 12MB354-4
Woofer chassis : Die-cast aluminium
Woofer voice coil diameter : 2.5″/63mm
HF : Custom CELTO Acoustique PCD440B
HF exit : 1″/25mm
HF voice coil diameter : 1.7″/44mm
Cabinet material : Braced 15mm birch plywood
Cabinet finish : UltraTex (USA) texture black coating – 4 coats
Grille : Two-tone, 1.5mm, curved, black powder coated
Floor monitor application : No
Flying hardware : 7 x M8 points
Mounting hardware : Dual angle pot (0° and 10°)
Cabinet size (HxWxD) : 595 x 340 x 345mm
Cabinet weight : 17.5kg
Altium 18
Speaker Type : Active 18″ Subwoofer
Amplification Type : Class D
Power Output : 2400 watts (peak-to-peak)
Frequency Response : TBA
Input Connectors : XLR
Output Connectors : Power In, Power Out
DSP Features : Electronic Crossover, Signal Processing Filters, Limiters, Time Alignment
Enclosure Material : Birch Plywood
Finish : UltraTex (USA) black textured paint
Dimensions : TBA
Weight : TBA
Mounting Options : M32 Pole Mount, Fly Points
Presets : 4 User Selectable Presets
Additional Features : Peak LED for Monitoring
