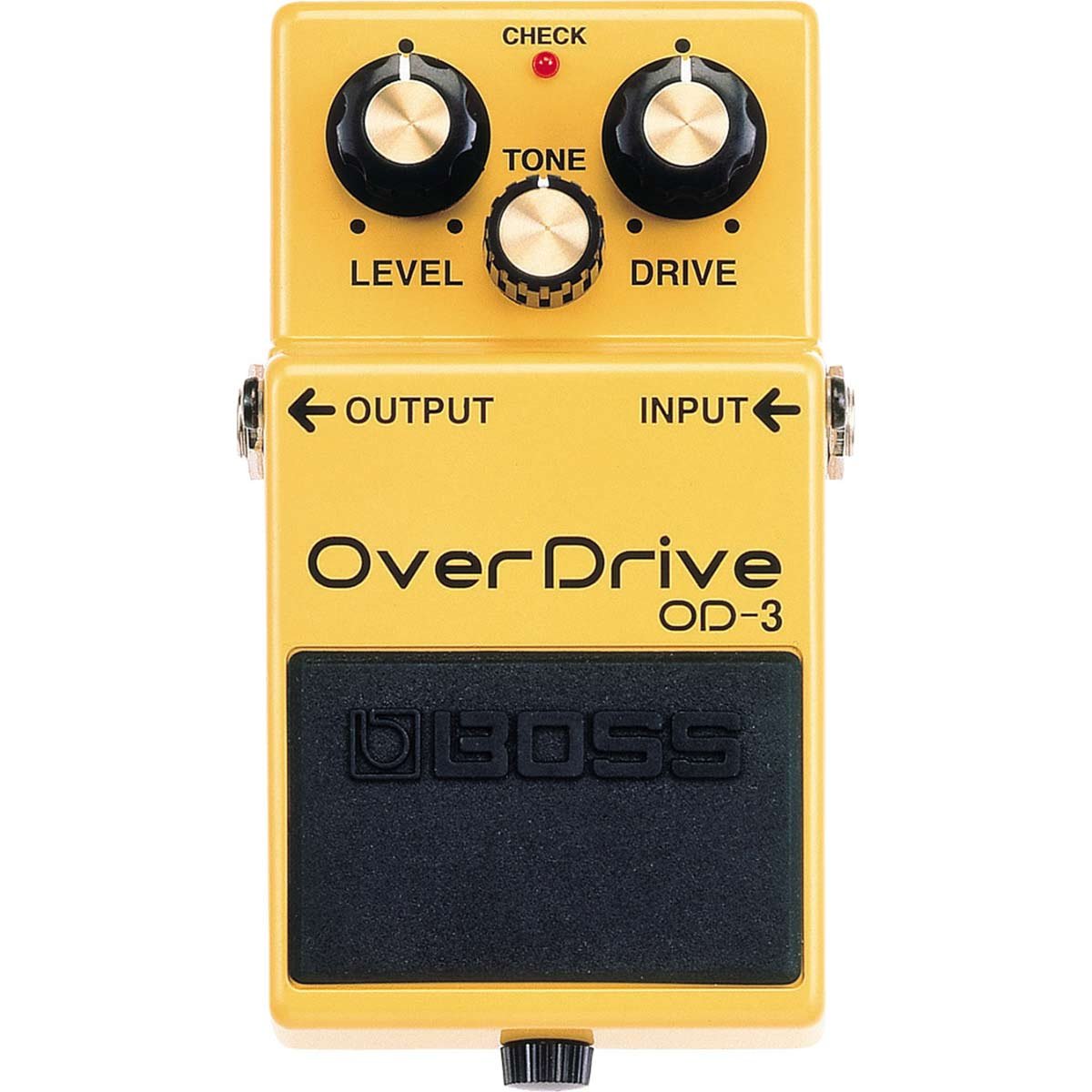

Boss OD-3 Overdrive Pedal
R3,599.00
NATURAL OVERDRIVE WITH ENDLESS SUSTAIN!
Built in the tradition of the legendary BOSS overdrives, the OD-3 OverDrive pedal gives guitarists a greatly expanded range of smooth overdrive tones and improved response while staying true to the original.
MAIN FEATURES :
Dual-Stage Overdrive Circuit offers a level of sustain and compression unmatched by any overdrive pedal
Increased dynamics yield a “bigger” sound than any previous BOSS overdrive pedal
Dynamic, non-muffled tones reminiscent of classic overdriven “stack” amps
Straightforward Drive, Tone and Level controls
Description
SPECIFICATIONS :
Nominal Input Level : -20 dBu
Input Impedance : 1 M ohm
Nominal Output Level : -20 dBu
Output Impedance : 1 k ohm
Recommended Load Impedance : 10 k ohms or greater
Bypass : Buffered bypass
Controls : DRIVE knob
TONE knob
LEVEL knob
Pedal switch
Indicator : CHECK indicator (Used for indication of check battery)
Connectors : INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack
Power Supply : Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw : 10 mA
Expected battery life under continuous use : Carbon: Approx. 48.5 hours
Alkaline: Approx. 78.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories : Owner’s manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Carbon-zinc battery (9 V, 6F22)
Options (sold separately) : AC adaptor: PSA series
SIZE AND WEIGHT
Width : 73 mm
2-7/8 inches
Depth : 129 mm
5-1/8 inches
Height : 59 mm
2-3/8 inches
Weight (including battery) : 410 g
15 oz
