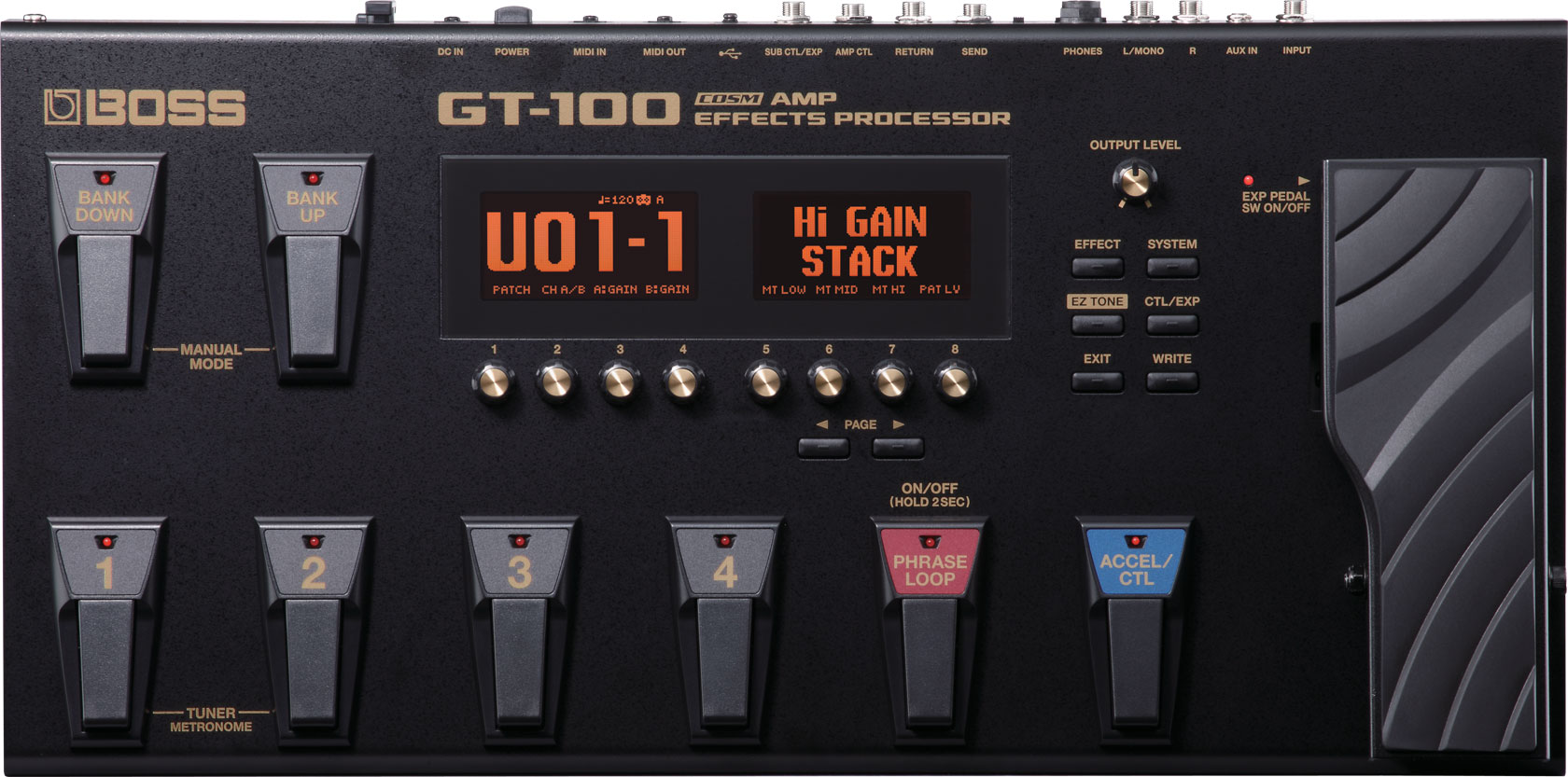

Boss GT-100 Guitar Multi FX Processor
HIGH-END AMPS AND EFFECTS FROM VINTAGE TO MODERN WITH ADVANCED FLEXIBILITY
With the new GT-100 Version 2.0 update, BOSS’ high-end multi-effects processor is now even more powerful than before, adding a host of great new features to its already formidable arsenal. Two new amp types are included, along with cutting-edge MDP effects, an acoustic guitar simulator, and an improved rotary effect. A convenient Guitar-to-MIDI function is on board as well, letting you connect to a computer to play soft synths and input MIDI note using your normal guitar. The GT-100’s USB audio capabilities have been expanded too, providing greater flexibility for re-amping applications. And with the BOSS TONE STUDIO software, you can now edit GT-100 patches from a friendly graphical interface on your computer.
MAIN FEATURES :
Advanced COSM amps that model vintage classics and deliver highly expressive tones
Dual LCDs and panel knobs offer simple and intuitive operation, with direct access to every parameter
EZ Tone feature with graphical Tone Grid for constructing new patches, plus Amp Customize and OD/DS Customize functions for easily creating original sounds
Unique Accel pedal provides simultaneous control of multiple parameters
Powerful A/B Channel Divider for creating dual amp and effects chains that can be blended together or toggled by footswitch, frequency, or picking strength
GT-100 Version 2.0—Newly Added Features
Two new amp models: BGNR UB Metal and ORNG Rock Reverb
New MDP effects powered by innovative BOSS technology: Tera Echo, Overtone, and A-DIST
Rotary 2 and Acoustic Guitar Simulator effects types added
Monophonic guitar-to-MIDI conversion from normal 1/4-inch guitar input
Enhanced USB audio/MIDI interface with multi-channel operation for flexible recording and efficient re-amping
Support for BOSS TONE STUDIO editor/librarian for Mac/Windows and new GT-100 Version 2.0 patches, available for free at bosstonecentral.com
Version 2.0 software available as a free download for all GT-100 owners
Description
SPECIFICATIONS :
AD Conversion : 24 bits + AF method (*1)
DA Conversion : 24 bits
Sampling Rate : 44.1 kHz
Program Memories : 400: 200 (User) + 200 (Preset)
Effect Type : COMP, PREAMP(*1), OD/DS(*2), EQ, FX1/FX2(*3), DELAY, CHORUS, REVERB, PEDAL FX, NS1/NS2, ACCEL FX
*1 PREAMP
NATURAL CLEAN, FULL RANGE, COMBO CRUNCH, STACK CRUNCH, HiGAIN STACK, POWER DRIVE, EXTREME LEAD, CORE METAL, JC-120, CLEAN TWIN, PRO CRUNCH, TWEED, DELUXE CRUNCH, VO DRIVE, VO LEAD, MATCH DRIVE, BG LEAD, BG DRIVE, MS1959 I, MS1959 I+II, R-FIER VINTAGE, R-FIER MODERN, T-AMP LEAD, SLDN, 5150 DRIVE, BGNR UB METAL*, ORNG ROCK REVERB*, CUSTOM
*2 OD/DS
MID BOOST, CLEAN BOOST, TREBLE BOOST, CRUNCH, NATURAL OD, WARM OD, FAT DS, LEAD DS, METAL DS, OCT FUZZ, A-DIST*, BLUES OD, OD-1, T-SCREAM, TURBO OD, DIST, RAT, GUV DS, DST+, METAL ZONE, ’60S FUZZ, MUFF FACE, CUSTOM
*3 FX1/FX2
T.WAH, AUTO WAH, SUB WAH, ADV. COMP, LIMITER, SUB OD/DS, GRAPHIC EQ, PARA EQ, TONE MODIFY, GUITAR SIM., AC.GUITAR SIM*, SLOW GEAR, DEFRETTER, WAVE SYNTH, SITAR SIM., OCTAVE, PITCH SHIFTER, HARMONIST, OVERTONE*, SOUND HOLD, AC. PROCESSOR, PHASER, FLANGER, TREMOLO, ROTARY1, ROTARY2*, UNI-V, PAN, SLICER, VIBRATO, RING MOD., HUMANIZER, 2X2 CHORUS, SUB DELAY, TERA ECHO*
*Newly Added Features (Version 2.0)
A-DIST is available in OD/DS and in SUB OD/DS of FX2.
OVERTONE and TERA ECHO are only available in FX2.
Nominal Input Level : INPUT: -10 dBu
RETURN: -10 dBu
AUX IN: -20 dBu
Input Impedance : INPUT: 1 M ohm
RETURN: 100 k ohms
AUX IN: 47 k ohms
Nominal Output Level : OUTPUT: -10 dBu/+4 dBu
SEND: -10 dBu
Output Impedance : OUTPUT: 2 k ohms
SEND: 2 k ohms
Dynamic Range : 100 dB or greater (IHF-A)
Displays : Graphic LCD (132 x 64 dots, backlit LCD) x 2
Connectors : INPUT jack (1/4-inch phone type)
AUX IN jack (Stereo miniature phone type)
OUTPUT L/MONO, R jacks (1/4-inch phone type)
PHONES jack (Stereo 1/4-inch phone type)
EXT LOOP jacks (SEND, RETURN; 1/4-inch phone type)
AMP CONTROL jack (1/4-inch phone type)
SUB CTL1, 2/SUB EXP jack (1/4-inch TRS phone type)
USB port
MIDI connectors (IN, OUT)
DC IN jack
Power Supply : DC 9 V
Current Draw : 600 mA
Accessories : AC Adaptor
USB Cap
Owner’s Manual
Options (sold separately) : Footswitch: BOSS FS-5U
Dual Footswitch: BOSS FS-6, BOSS FS-7
Expression Pedal: BOSS FV-500L/500H, Roland EV-5
SIZE AND WEIGHT
Width : 542 mm
21-3/8 inches
Depth : 271 mm
10-11/16 inches
Height : 80 mm
3-3/16 inches
Weight : 4.8 kg
10 lbs. 10 oz.
