Allen & Heath GX4816 48 In x 16 Out XLR Expander for SQ, Avantis & D-Live Mixers
Original price was: R99,999.00.R83,999.00Current price is: R83,999.00.

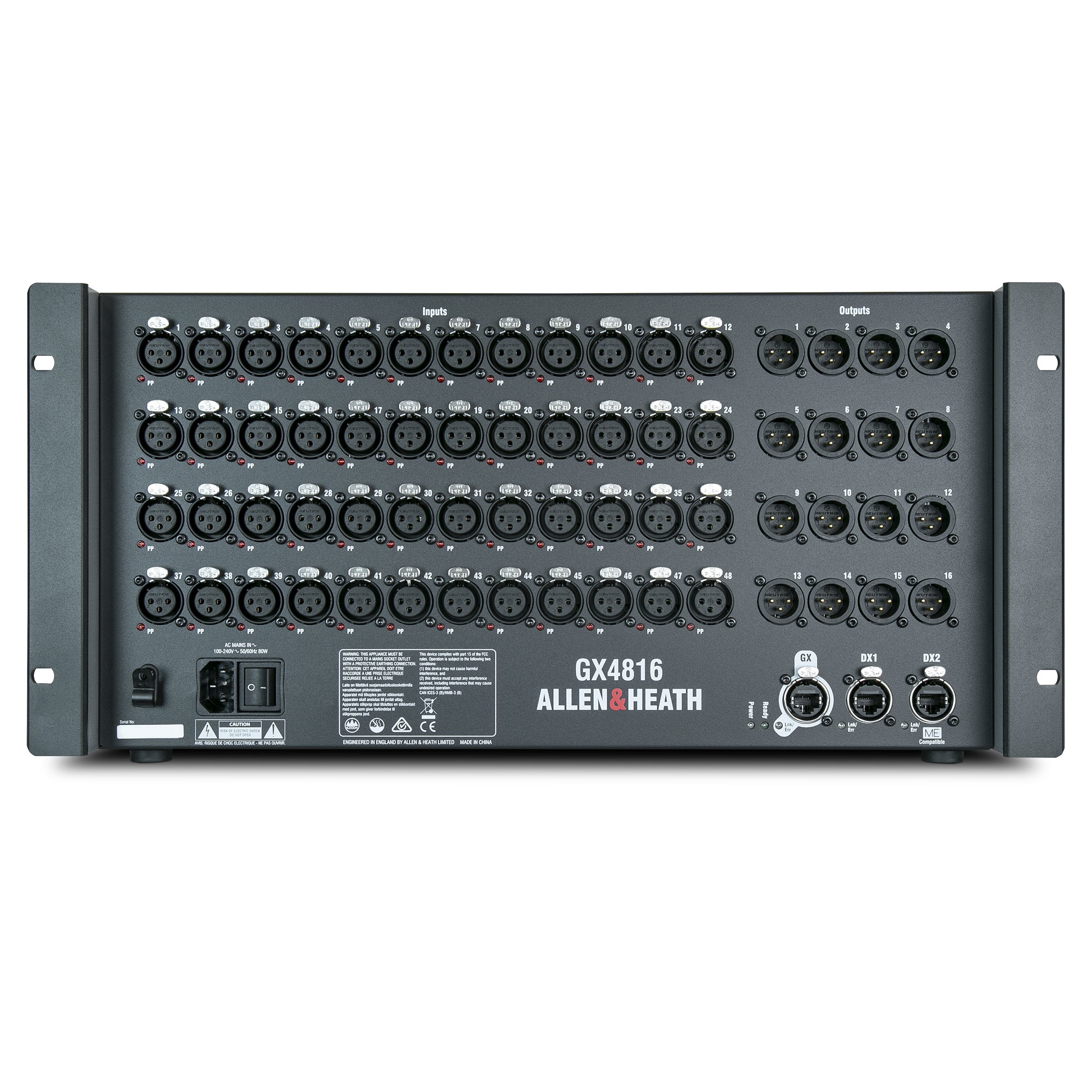

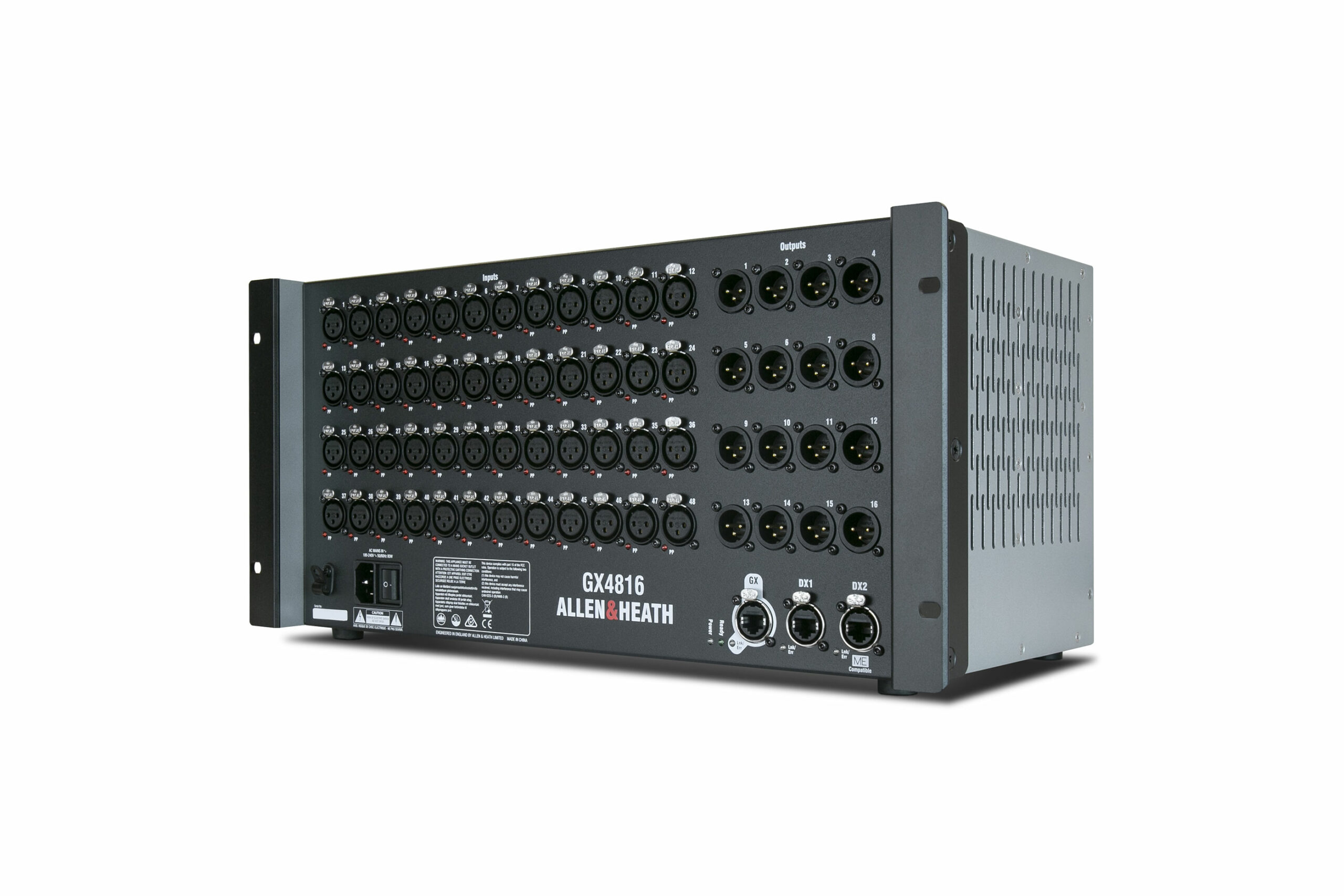

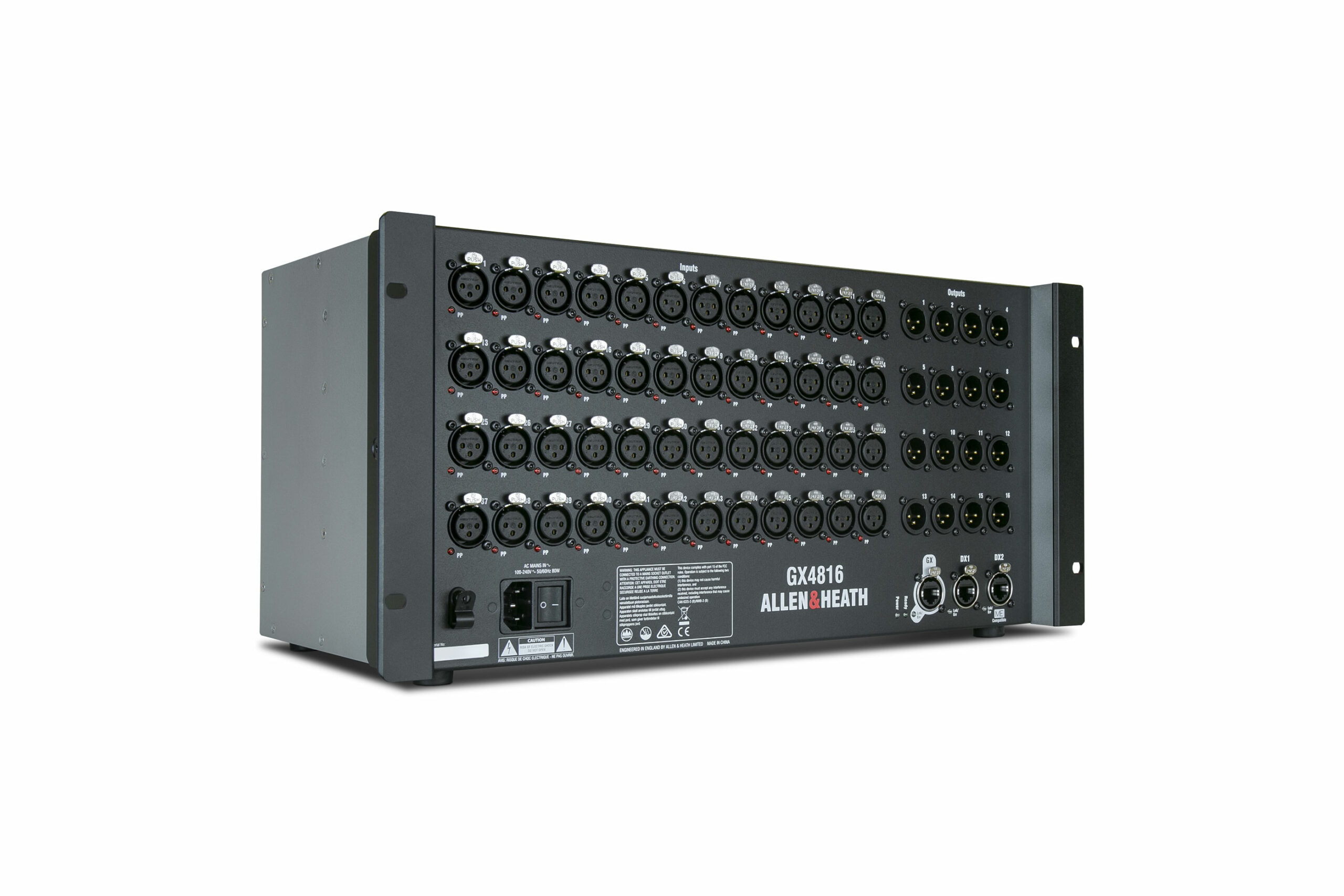

48 XLR Input / 16 XLR Output Portable GX Expander w/ DX Sockets
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for the AHM-64 audio matrix processor.
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ or Avantis.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, Avantis or AHM-64, or to a gigaACE audio network card on a dLive system. Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Key Features
48 Mic Preamps on XLR with Phantom Power status LEDs
16 XLR Line Outs
96kHz operation
DX1 Port – compatible with a single DX32, or up to 2 DX168/DX164-W expanders
DX2/ME Port – compatible with a single DX32, up to 2 DX168/DX164-W expanders, or a ME personal monitoring system (not compatible with AHM-64 or dLive).
Compatible with SQ, Avantis, AHM-64 and dLive (dLive requires firmware V1.86 onwards)
Multiple GX4816 can be added to a system:
Up to 2 GX4816 units can be added to a SQ system
Up to 3 GX4816 units can be added to an Avantis system
Up to 5 GX4816 units can be added to a dLive S Class system
Up to 3 GX4816 units can be added to a dLive C Class system
Rack-mounted (5u) or shelf/floor operation
Plug and Play – no IP addressing required
Compatible with CAT5e (or higher) cables of up to 100m
Locking EtherCon ports
Description
Specifications
Inputs
Mic/Line XLR Inputs : Balanced XLR, +48V phantom power
Mic/Line Preamp : Fully recallable
Input Sensitivity : -60 to +15dBu
Analogue Gain : +5 to +60dB, 1dB steps
Pad : -20dB Active PAD
Maximum Input Level : +30dBu (PAD in)
Input Impedance : >4kΩ (Pad out), >10kΩ (Pad in)
Mic EIN : -127dB with 150Ω source
Phantom Power indication : Per socket, internal or external phantom power sensing, triggered at 24V
Outputs
Analogue XLR Outputs : Balanced, Relay protected
Output Impedance : <75Ω
Nominal Output : +4dBu = 0dB meter reading
Maximum Output : Level +21dBu
Residual Output Noise : -95dBu (muted, 22Hz-22kHz)
Power
Mains Voltage Operating Range : 100-240V AC, 50/60Hz
Mains Power Consumption : 80W max
Temperature
Operating Temperature Range : 0°C to 40°C (32°F to 104°F)
Dimensions & Weight (Width x Depth x Height x Weight)
GX4816 : 481.6 x 255 x 229.5 mm x 8kg (18.9” x 10” x 9” x 17.6lbs)
GX4816 (boxed) : 560 x 385 x 310 mm x 10kg (22” x 15.2” x 12.2” x 22lbs)
