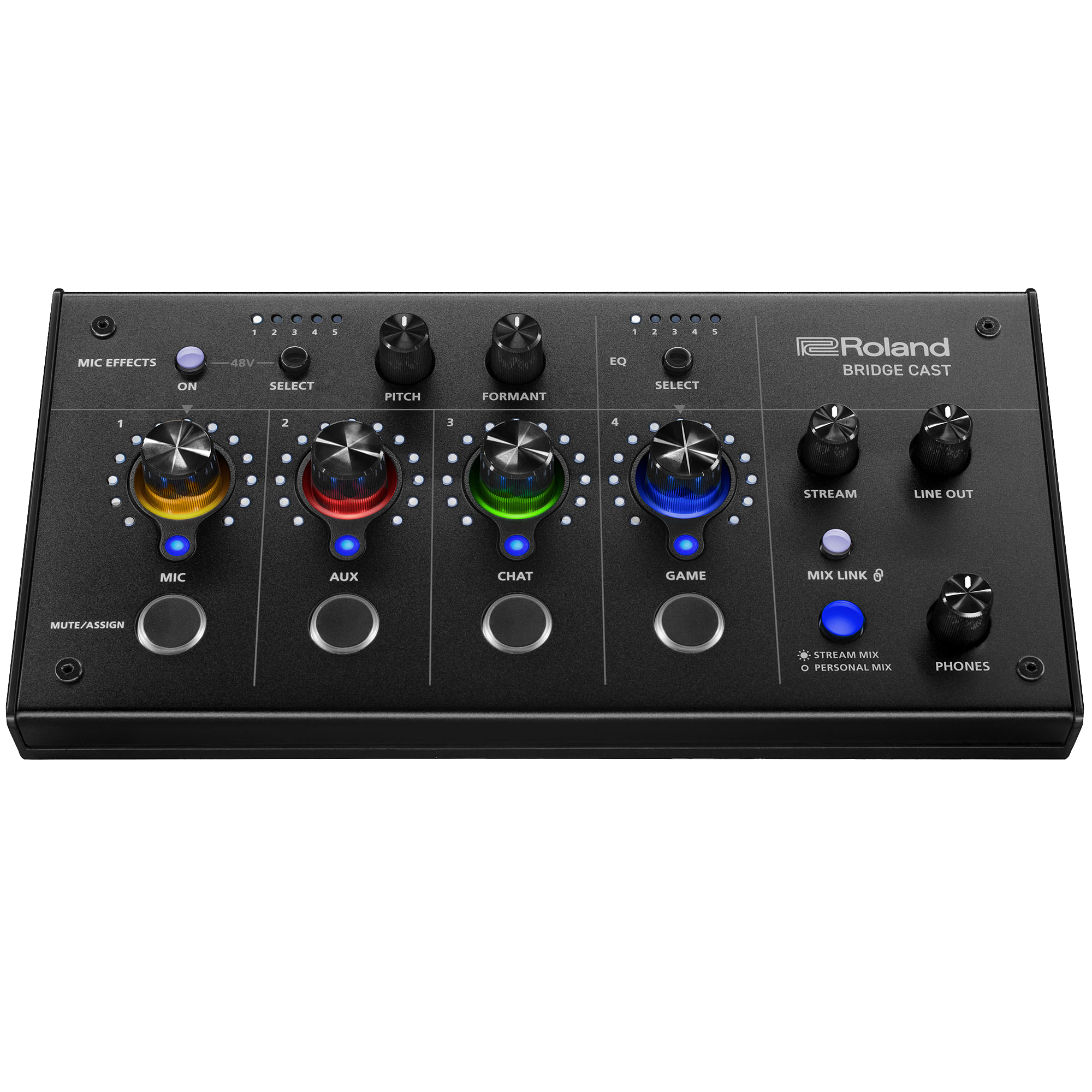

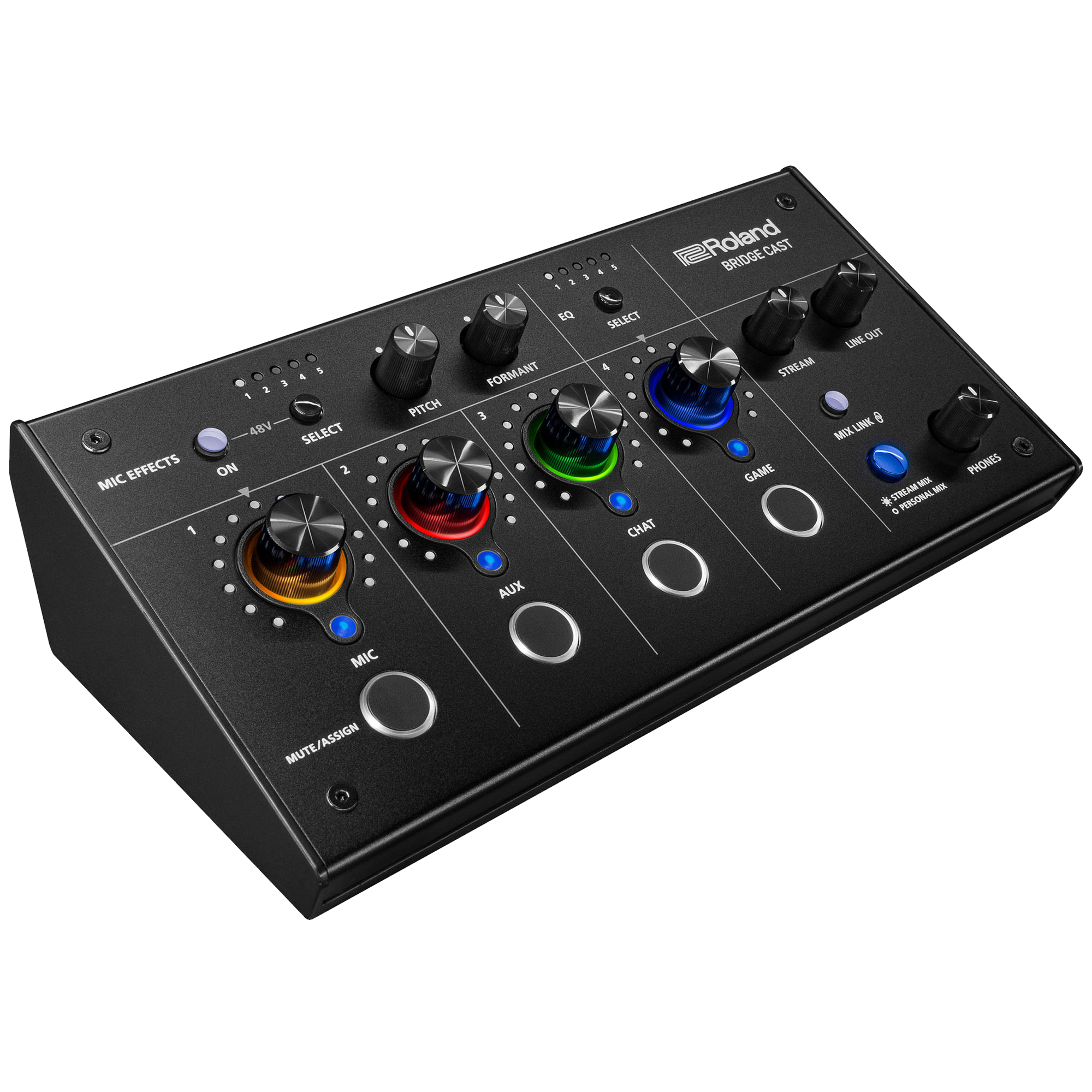

Roland Bridge Cast Dual Bus Gaming Mixer

R10,299.00

Pro Sound for Pro Gamers

Take online gaming sound to the next level with BRIDGE CAST, your all-in-one solution for premium livestream audio. This customizable desktop hub is packed with secret weapons to take out the competition, including dual sound mixes, vocal transformer effects, music playback, sound effects, and support for a broadcast-grade mic and headphones. In the heat of the battle, BRIDGE CAST ensures that your audio is always as epic as your gameplay.



Key Features

Professional audio streaming interface and mixer designed for online gamers
Powerful 32-bit hardware DSP allows you to dedicate all your computer resources to gaming and streaming
Create independent mixes for you and the online audience with dual audio busses
USB-C connectivity with Windows and Mac* computers and mobile devices
Also works with the Sony PlayStation®5 console**
High-quality XLR microphone preamp with phantom power for broadcast-grade mics
Headphones jack with a professional high-sensitivity output and support for a headset or inline mic
Hands-on knobs and buttons for quick sound control
Solid, streamlined design with customizable faceplate and adjustable knob LED colors
Voice Changer effects derived from the Roland VT series
High-quality vocal processing: EQ, compressor, noise suppressor, de-esser, and reverb
Enhance your gaming performance with five customizable Game EQ presets
Delay function to synchronize audio with video when needed
Aux input for playing audio from a smartphone or external device
Customize settings and save hardware configurations with the BRIDGE CAST app
Add royalty-free music to streams via the BRIDGECAST app and Roland Cloud***

Add to Wishlist
Add to Wishlist

Description

Specifications

Input Channel
MIC
AUX
CHAT (*1)
GAME (*1)
MUSIC (*1)
SYSTEM (*1)
USB (*2)
(*1) When the USB port connection setting is “PC”
(*2) When the USB port connection setting is “CONSOLE/MOBILE”

Output Channel
LINE OUT
PHONES
MIC (*3)
STREAM (*3)
PERSONAL (*3)
USB(*4)
(*3) When the USB port connection setting is “PC”
(*4) When the USB port connection setting is “CONSOLE/MOBILE”

Connectors
MIC jack: XLR type (Phantom power DC 48 V, 6 mA Max)
PHONES/HEADSET jack: Stereo miniature phone type (CTIA, PLUG-IN power)
AUX jack: Stereo miniature phone type (TRRS)
LINE OUT jack: Stereo miniature phone type (TRS)
USB port: USB Type-C (R)
USB DC 5V port: USB Type-C

Audio Mixing Bus : 2 (STREAM MIX, PERSONAL MIX)
Sampling Frequency : 44.1 kHz, 48 kHz, 96 kHz
Signal Processing : AD/DA: 24 bits
Internal Processing : 32-bit Floating point

Effects
MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
CHAT: De-esser, Compressor
GAME: Equalizer
STREAM: Delay

Audio File Player
Number of tracks: 2
Data Formats: WAV (Linear PCM, 48 kHz, 16 bits, stereo/mono)
Maximum Time: 5 seconds/track

Input Level
MIC: -85.5–10.5 dBu (Maximum: +1.5 dBu)
HEADSET MIC: -58.5–20.5 dBu (Maximum: -8.5 dBu)
AUX: -10 dBu (Maximum: +2 dBu)

Input Impedance
MIC: 3.4 k ohms
HEADSET MIC: 1.3 k ohms
AUX: 10 k ohms

Output Level
LINE OUT: -4 dBu (Maximum: +8 dBu)
PHONES/HEADSET: -1 dBu (Maximum: +11 dBu)
PHONES/HEADSET: 78 mW + 78 mW (32 ohms)
PHONES/HEADSET: 35 mW + 35 mW (250 ohms)

Output Impedance
LINE OUT: 1 k ohm
PHONES/HEADSET: 10 ohms

Power
USB bus power
USB AC adaptor (commercially available)
* Use an USB AC adaptor that can supply 5 V, 1.0 A or more.
Current Draw : 5 V DC, 900 mA

Operating System
Microsoft Windows 10, Windows 11
Apple macOS 11 or later
Apple iOS 15 or later

* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the BRIDGE CAST, Roland cannot guarantee that a given computer can be used satisfactorily with the BRIDGE CAST based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.

Accessories
Leaflet “Read Me First”
USB 2.0 Type-C to Type-C Cable (2 m, 6.5 feet)
USB 2.0 Type-C to Type-A Cable (2 m, 6.5 feet)

Size and Weight
Width : 222 mm / 8.7 inches
Depth : 110 mm / 4.3 inches
Height : 70 mm / 2.8 inches
Weight : 450 g / 1 lb
